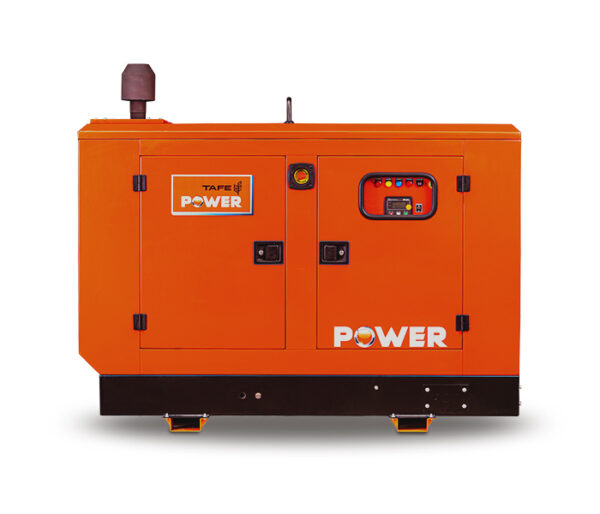

TAF-P-25A
Known for quality,technology and reliability,TAFEPOWER Diesel Generators have low operational expenses,high fuel efficiency and offer
superior value for money.They are safe,highly customizable and can be built based on the applicatin and customer requirements.TMTL is one
of the fastest growing businesses in the Indian industry,with a dominant market share in the telecom segment
မန္တလေးမြို့တွင်း 𝐀𝐫𝐞𝐚 များနဲ့ ရန်ကုန်မြို့ သတ်မှတ်မြို့နယ် 𝐀𝐫𝐞𝐚 များကို 𝐃𝐞𝐥𝐢𝐯𝐞𝐫𝐲 𝐅𝐫𝐞𝐞 ၊ 𝐈𝐧𝐬𝐭𝐚𝐥𝐥𝐚𝐭𝐢𝐨𝐧 𝐂𝐡𝐚𝐫𝐠𝐞𝐬 𝐅𝐫𝐞𝐞 နဲ့ ပို့ဆောင်ပေးပါသည်။ နယ်မှ ဝယ်ယူသူများအတွက် ကားဂိတ်သို့ ပို့ဆောင်ပေးပါသည်။
| Technical Specification | ||
| Power | 25 kVA | |
| Duty | Prime | |
| Control Panel | Options Available for AMF / Manual Control | |
| Acoustic Insulation | PU FR – Acoustic Foam | |
| Dimensions (Length) | 2050 mm | |
| Dimensions (Breadth) | 900 mm | |
| Dimensions (Height) | 1275 mm | |
| Fuel Tank Capacity * | 100 L | |
| Weight ** | 1050 kg | |
| ENGINE | ||
| Engine Manufacturer | TAFE Motors and Tractors Limited | |
| Engine Brand | TAFE POWER | |
| Engine Model | 422 ES | |
| Cylinders | 3 | |
| Aspiration | Naturally Aspirated | |
| Engine BHP (gross) | 35.5 | |
| Reference Standard | Engine – BS: 5514, ISO : 3046, IS 10000, Genset – ISO: 8528 | |
| Displacement | 2945 cc | |
| Compression Ratio | 17:1 | |
| Type / Class of Governing | Mechanical / A1 (As per BS 5514) | |
| Bore x Stroke | 100 x 125 mm | |
| Type of Cooling | Air Cooled | |
| Lub Oil Sump Capacity (With Filters) | 9.5 | |
| Engine Electrical System | 12 Volts DC | |
| ALTERNATOR | ||
| Brand | Stamford / Leroy Somer | |
| Phase | 1 Phase / 3Phase | |
| Voltage | 220, 230, 240 V AC / 380, 400, 415 V AC | |
| Power Alternator Type | Single Bearing, Brushless, Single / Three Phase, Insulation Class H | |
| Power Factor | 0.8 lag | |
| Rated Speed / Frequency | 1500 RPM, 50 Hz / 1800 RPM, 60 Hz | |
