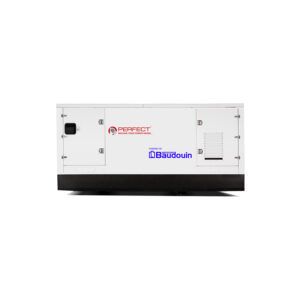

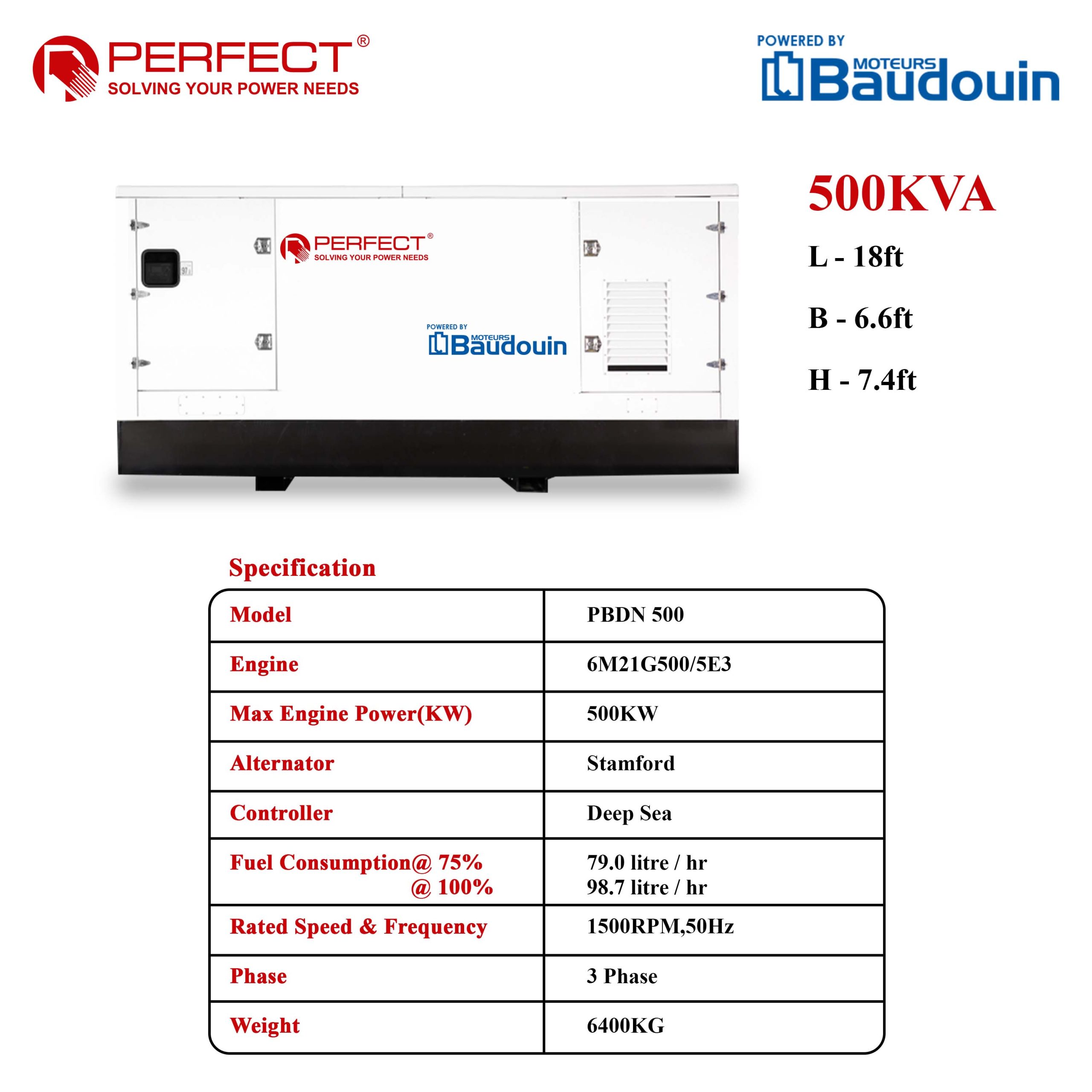

Perfect Baudouin 500KVA 3P
In stock
The company provides official warranty 2 years or 2000 running hours, whichever comes first.
In every 500 hrs or 10 months within the warranty , the preventive maintenance is supplied free service charges to the site with the qualified service engineers.
The company provides the service hotline and supporting telegram channel to solve the problems on time.
မန္တလေးမြို့တွင်း 𝐀𝐫𝐞𝐚 များနဲ့ ရန်ကုန်မြို့ သတ်မှတ်မြို့နယ် 𝐀𝐫𝐞𝐚 များကို 𝐃𝐞𝐥𝐢𝐯𝐞𝐫𝐲 𝐅𝐫𝐞𝐞 ၊ 𝐈𝐧𝐬𝐭𝐚𝐥𝐥𝐚𝐭𝐢𝐨𝐧 𝐂𝐡𝐚𝐫𝐠𝐞𝐬 𝐅𝐫𝐞𝐞 နဲ့ ပို့ဆောင်ပေးပါသည်။ နယ်မှ ဝယ်ယူသူများအတွက် ကားဂိတ်သို့ ပို့ဆောင်ပေးပါသည်။
| PBDN 500 | |
| Engine Basic Data | |
| DG Model | PBDN 500 |
| Engine Model | 6M21G500/5E3 |
| Suitable KVA rating | 500 |
| Max. engine power (kWm) | 450 |
| Bore x stroke (mm) | 127 x 165 |
| Displacement (L) | 12.54 |
| No. of cylinders | 6 – Inline |
| Aspiration | Turbocharged-Aftercooled |
| Compression ratio | 16:1 |
| Performance data | |
| Load factor | Fuel Consumption litre / hr |
| 75% | 79 |
| 100% | 98.7 |
| Lubrication system | |
| Total lube oil capacity (L) | 30 |
| Lube oil consumption and fuel consumption ratio | < 0.2% |
| Recommended lube oil specification | C14+15W40 |
| Fuel System | |
| Injection pump type | HPCR |
| Governor method | ECU |
| Governing Class | G3 |
| Cooling system | |
| Total coolant capacity (L) | 55 |
| Recommended coolant specification | 50:50 Ethylene glycol premix |
| Dimensions and weight (Power Pack) | |
| Length (mm) | 5500 |
| Width (mm) | 2000 |
| Height (mm) | 2252 |
| Weight (kg) | 6400 |
| Fuel Tank Capacity in Ltr | 700 |
| Alternator | |
| Frequency (Hz) | 50 |
| Insulation | Class H |
The company provides official warranty 2 years or 2000 running hours, whichever comes first.
In every 500 hrs or 10 months within the warranty , the preventive maintenance is supplied free service charges to the site with the qualified service engineers.
The company provides the service hotline and supporting telegram channel to solve the problems on time.
မန္တလေးမြို့တွင်း 𝐀𝐫𝐞𝐚 များနဲ့ ရန်ကုန်မြို့ သတ်မှတ်မြို့နယ် 𝐀𝐫𝐞𝐚 များကို 𝐃𝐞𝐥𝐢𝐯𝐞𝐫𝐲 𝐅𝐫𝐞𝐞 ၊ 𝐈𝐧𝐬𝐭𝐚𝐥𝐥𝐚𝐭𝐢𝐨𝐧 𝐂𝐡𝐚𝐫𝐠𝐞𝐬 𝐅𝐫𝐞𝐞 နဲ့ ပို့ဆောင်ပေးပါသည်။ နယ်မှ ဝယ်ယူသူများအတွက် ကားဂိတ်သို့ ပို့ဆောင်ပေးပါသည်။
