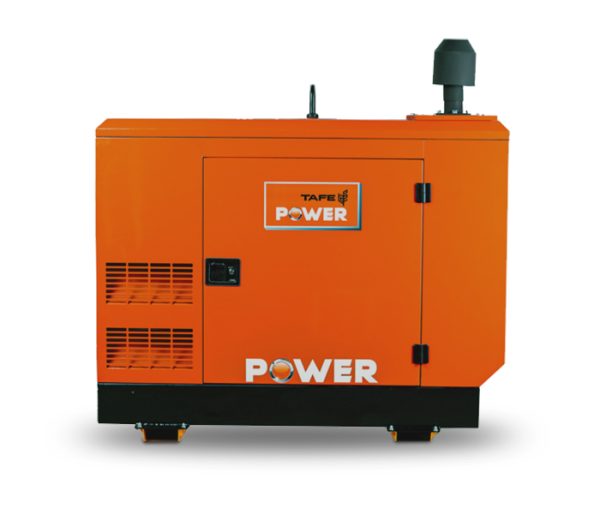

Tafe Power 20KVA SILENT TYPE POWER AMF PANEL (SINGLE PHASE)
In stock
The company provides official warranty 2 years or 2000 running hours, whichever comes first.
In every 250 hrs or 8 months within the warranty , the preventive maintenance is supplied free service charges to the site with the qualified service engineers.
The company provides the service hotline and supporting telegram channel to solve the problems on time.
မန္တလေးမြို့တွင်း 𝐀𝐫𝐞𝐚 များနဲ့ ရန်ကုန်မြို့ သတ်မှတ်မြို့နယ် 𝐀𝐫𝐞𝐚 များကို 𝐃𝐞𝐥𝐢𝐯𝐞𝐫𝐲 𝐅𝐫𝐞𝐞 ၊ 𝐈𝐧𝐬𝐭𝐚𝐥𝐥𝐚𝐭𝐢𝐨𝐧 𝐂𝐡𝐚𝐫𝐠𝐞𝐬 𝐅𝐫𝐞𝐞 နဲ့ ပို့ဆောင်ပေးပါသည်။ နယ်မှ ဝယ်ယူသူများအတွက် ကားဂိတ်သို့ ပို့ဆောင်ပေးပါသည်။
| Power | 20 kVA | |
| Duty | Prime | |
| Control Panel | AMF | |
| Acoustic Insulation | PU FR – Acoustic Foam | |
| Dimensions (Length) | 1700 mm | |
| Dimensions (Breadth) | 900 mm | |
| Dimensions (Height) | 1275 mm | |
| Fuel Tank Capacity * | 80 L | |
| Weight ** | 950 kg | |
| ENGINE | ||
| Engine Manufacturer | TAFE Motors and Tractors Limited | |
| Engine Brand | TAFE POWER | |
| Engine Model | 323 ES | |
| Cylinders | 2 | |
| Aspiration | Naturally Aspirated | |
| Engine BHP (gross) | 25.7 | |
| Reference Standard | Engine – BS: 5514, ISO : 3046, IS 10000, Genset – ISO: 8528 | |
| Displacement | 1963 cc | |
| Compression Ratio | 17:1 | |
| Type / Class of Governing | Mechanical / A1 (As per BS 5514) | |
| Bore x Stroke | 100 x 125 mm | |
| Type of Cooling | Air Cooled | |
| Lub Oil Sump Capacity (With Filters) | 8 | |
| Engine Electrical System | 12 Volts DC | |
| ALTERNATOR | ||
| Brand | Stamford / Leroy Somer | |
| Phase | 1 Phase | |
| Voltage | 220, 230, 240 V AC | |
| Power Alternator Type | Single Bearing, Brushless, Single / Three Phase, Insulation Class H | |
| Power Factor | 0.8 lag | |
| Rated Speed / Frequency | 1500 RPM, 50 Hz / 1800 RPM, 60 Hz |
The company provides official warranty 2 years or 2000 running hours, whichever comes first.
In every 250 hrs or 8 months within the warranty , the preventive maintenance is supplied free service charges to the site with the qualified service engineers.
The company provides the service hotline and supporting telegram channel to solve the problems on time.
မန္တလေးမြို့တွင်း 𝐀𝐫𝐞𝐚 များနဲ့ ရန်ကုန်မြို့ သတ်မှတ်မြို့နယ် 𝐀𝐫𝐞𝐚 များကို 𝐃𝐞𝐥𝐢𝐯𝐞𝐫𝐲 𝐅𝐫𝐞𝐞 ၊ 𝐈𝐧𝐬𝐭𝐚𝐥𝐥𝐚𝐭𝐢𝐨𝐧 𝐂𝐡𝐚𝐫𝐠𝐞𝐬 𝐅𝐫𝐞𝐞 နဲ့ ပို့ဆောင်ပေးပါသည်။ နယ်မှ ဝယ်ယူသူများအတွက် ကားဂိတ်သို့ ပို့ဆောင်ပေးပါသည်။
