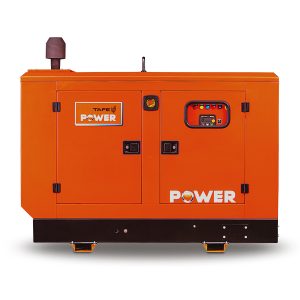

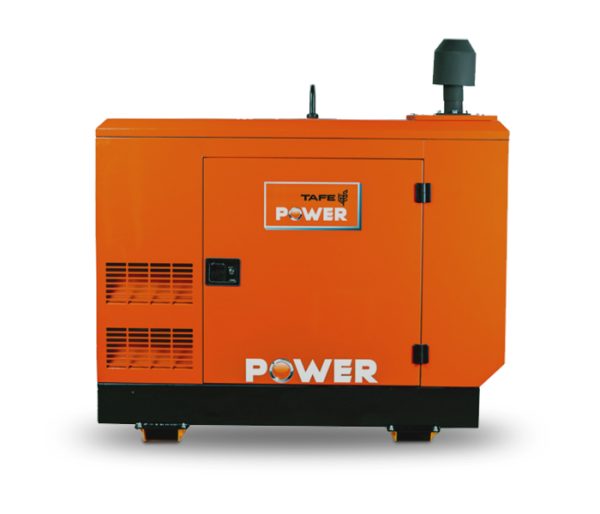

Tafe Power 20KVA SILENT TYPE POWER AMF PANEL (THREE PHASE)

In stock

General Information
Specification
Known for quality, technology and reliability, the Diesel Generators from TAFE POWER have low operational expenses, high fuel efficiency and higher value offering at an affordable price. The generators from TAFE POWER are safe, silent, highly customizable and can be built based on the application and customer requirements. The generators range from 5-125 kVA. The air-cooled range comprises 5-35 kVA and the liquid-cooled range comprises 30-125 kVA generators.

The company provides official warranty 2 years or 2000 running hours, whichever comes first.

In every 250 hrs or 8 months within the warranty , the preventive maintenance is supplied free service charges to the site with the qualified service engineers.

The company provides the service hotline and supporting telegram channel to solve the problems on time.

မန္တလေးမြို့တွင်း 𝐀𝐫𝐞𝐚 များနဲ့ ရန်ကုန်မြို့ သတ်မှတ်မြို့နယ် 𝐀𝐫𝐞𝐚 များကို 𝐃𝐞𝐥𝐢𝐯𝐞𝐫𝐲 𝐅𝐫𝐞𝐞 ၊ 𝐈𝐧𝐬𝐭𝐚𝐥𝐥𝐚𝐭𝐢𝐨𝐧 𝐂𝐡𝐚𝐫𝐠𝐞𝐬 𝐅𝐫𝐞𝐞 နဲ့ ပို့ဆောင်ပေးပါသည်။ နယ်မှ ဝယ်ယူသူများအတွက် ကားဂိတ်သို့ ပို့ဆောင်ပေးပါသည်။

Power 20 kVA
Duty Prime
Control Panel  AMF
Acoustic Insulation PU FR – Acoustic Foam
Dimensions (Length) 1700 mm
Dimensions (Breadth) 900 mm
Dimensions (Height) 1275 mm
Fuel Tank Capacity * 80 L
Weight ** 950 kg
ENGINE
Engine Manufacturer TAFE Motors and Tractors Limited
Engine Brand TAFE POWER
Engine Model 323 ES
Cylinders 2
Aspiration Naturally Aspirated
Engine BHP (gross) 25.7
Reference Standard Engine – BS: 5514, ISO : 3046, IS 10000, Genset – ISO: 8528
Displacement 1963 cc
Compression Ratio 17:1
Type / Class of Governing Mechanical / A1 (As per BS 5514)
Bore x Stroke 100 x 125 mm
Type of Cooling Air Cooled
Lub Oil Sump Capacity (With Filters) 8
Engine Electrical System 12 Volts DC
ALTERNATOR
Brand Stamford
Phase 3Phase
Voltage  380, 400, 415 V AC
Power Alternator Type Single Bearing, Brushless, Single / Three Phase, Insulation Class H
Power Factor 0.8 lag
Rated Speed / Frequency 1500 RPM, 50 Hz / 1800 RPM, 60 Hz





Fast Shipping

Carrier information

100+ products

Payment methods

24/7 Support

Unlimited help desk

7-day Delivery

Track or off orders

The company provides official warranty 2 years or 2000 running hours, whichever comes first.

In every 250 hrs or 8 months within the warranty , the preventive maintenance is supplied free service charges to the site with the qualified service engineers.

The company provides the service hotline and supporting telegram channel to solve the problems on time.

မန္တလေးမြို့တွင်း 𝐀𝐫𝐞𝐚 များနဲ့ ရန်ကုန်မြို့ သတ်မှတ်မြို့နယ် 𝐀𝐫𝐞𝐚 များကို 𝐃𝐞𝐥𝐢𝐯𝐞𝐫𝐲 𝐅𝐫𝐞𝐞 ၊ 𝐈𝐧𝐬𝐭𝐚𝐥𝐥𝐚𝐭𝐢𝐨𝐧 𝐂𝐡𝐚𝐫𝐠𝐞𝐬 𝐅𝐫𝐞𝐞 နဲ့ ပို့ဆောင်ပေးပါသည်။ နယ်မှ ဝယ်ယူသူများအတွက် ကားဂိတ်သို့ ပို့ဆောင်ပေးပါသည်။

Tafe Power 20KVA SILENT TYPE POWER AMF PANEL (THREE PHASE)

In stock

Power 20 kVA
Duty Prime
Control Panel  AMF
Acoustic Insulation PU FR – Acoustic Foam
Dimensions (Length) 1700 mm
Dimensions (Breadth) 900 mm
Dimensions (Height) 1275 mm
Fuel Tank Capacity * 80 L
Weight ** 950 kg
ENGINE
Engine Manufacturer TAFE Motors and Tractors Limited
Engine Brand TAFE POWER
Engine Model 323 ES
Cylinders 2
Aspiration Naturally Aspirated
Engine BHP (gross) 25.7
Reference Standard Engine – BS: 5514, ISO : 3046, IS 10000, Genset – ISO: 8528
Displacement 1963 cc
Compression Ratio 17:1
Type / Class of Governing Mechanical / A1 (As per BS 5514)
Bore x Stroke 100 x 125 mm
Type of Cooling Air Cooled
Lub Oil Sump Capacity (With Filters) 8
Engine Electrical System 12 Volts DC
ALTERNATOR
Brand Stamford
Phase 3Phase
Voltage  380, 400, 415 V AC
Power Alternator Type Single Bearing, Brushless, Single / Three Phase, Insulation Class H
Power Factor 0.8 lag
Rated Speed / Frequency 1500 RPM, 50 Hz / 1800 RPM, 60 Hz





Known for quality, technology and reliability, the Diesel Generators from TAFE POWER have low operational expenses, high fuel efficiency and higher value offering at an affordable price. The generators from TAFE POWER are safe, silent, highly customizable and can be built based on the application and customer requirements. The generators range from 5-125 kVA. The air-cooled range comprises 5-35 kVA and the liquid-cooled range comprises 30-125 kVA generators.

The company provides official warranty 2 years or 2000 running hours, whichever comes first.

In every 250 hrs or 8 months within the warranty , the preventive maintenance is supplied free service charges to the site with the qualified service engineers.

The company provides the service hotline and supporting telegram channel to solve the problems on time.

မန္တလေးမြို့တွင်း 𝐀𝐫𝐞𝐚 များနဲ့ ရန်ကုန်မြို့ သတ်မှတ်မြို့နယ် 𝐀𝐫𝐞𝐚 များကို 𝐃𝐞𝐥𝐢𝐯𝐞𝐫𝐲 𝐅𝐫𝐞𝐞 ၊ 𝐈𝐧𝐬𝐭𝐚𝐥𝐥𝐚𝐭𝐢𝐨𝐧 𝐂𝐡𝐚𝐫𝐠𝐞𝐬 𝐅𝐫𝐞𝐞 နဲ့ ပို့ဆောင်ပေးပါသည်။ နယ်မှ ဝယ်ယူသူများအတွက် ကားဂိတ်သို့ ပို့ဆောင်ပေးပါသည်။

Power 20 kVA
Duty Prime
Control Panel  AMF
Acoustic Insulation PU FR – Acoustic Foam
Dimensions (Length) 1700 mm
Dimensions (Breadth) 900 mm
Dimensions (Height) 1275 mm
Fuel Tank Capacity * 80 L
Weight ** 950 kg
ENGINE
Engine Manufacturer TAFE Motors and Tractors Limited
Engine Brand TAFE POWER
Engine Model 323 ES
Cylinders 2
Aspiration Naturally Aspirated
Engine BHP (gross) 25.7
Reference Standard Engine – BS: 5514, ISO : 3046, IS 10000, Genset – ISO: 8528
Displacement 1963 cc
Compression Ratio 17:1
Type / Class of Governing Mechanical / A1 (As per BS 5514)
Bore x Stroke 100 x 125 mm
Type of Cooling Air Cooled
Lub Oil Sump Capacity (With Filters) 8
Engine Electrical System 12 Volts DC
ALTERNATOR
Brand Stamford
Phase 3Phase
Voltage  380, 400, 415 V AC
Power Alternator Type Single Bearing, Brushless, Single / Three Phase, Insulation Class H
Power Factor 0.8 lag
Rated Speed / Frequency 1500 RPM, 50 Hz / 1800 RPM, 60 Hz
